Place of Origin: | China |
Brand Name: | WEEM |
Model Number: | 1128 segmented belt |
Minimum Order Quantity: | 100 pcs |
---|---|
Packaging Details: | 4 pcs per box |
Delivery Time: | 10 workdays |
Payment Terms: | T/T |
Supply Ability: | All year |
Treatments: | Anti-static | Grain: | Silicon Carbide |
---|---|---|---|
Backing: | Yy Weight Polyester | Bond: | Resin Over Resin |
Grit: | P40-P220 | Appplication: | Chip Board|glass|metal |
High Light: | cloth sanding belts,wide sanding belts |

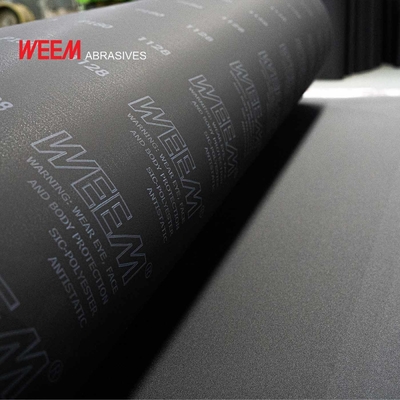

Custom Made Silicon Carbide Sanding Belts / P220 Abrasive Sanding Belts
Quick Detail:
WEEM 1128 segmented wide belt is designed for with heavy duty YY weight polyester backing place premium silicon carbide gain, 1128 is suitable for heavy duty and durable surface sanding. With custom sectional belt, WEEM 1128 can make into belt’s width up from 1400mm to 3000mm and more with 2/3 joints. Best Choice for Surface Finishing of MDF, Particleboard and Plywood Panels.
Description:
WEEM 1128 is design for sectional belt, or segmented belt. Therefore when we chose the right backing to sustain cross-direction strength, YY weight waterproof polyester backing is the best choice. This is a type of cloth backing provided both stiffness strength and tensile strength, idea for sectional belt requirement. Anti-static treatment made on backing to delay or prevent loading problem.
Care selection of gains, only premium silicon carbide is selected. Silicon carbide is a very hard and crystal structure produces a fine straight edged grind lines. It is superior for its ability to penetrate with light cutting pressures. SiC is primarily used for grinding nonferrous materials such as brass, copper, bronze, and wood, glass, rubber and plastics. It is also used to finish polyurethanes, primers, lacquers and sealers. And use closed coated technique bond on the backing to ensure the grinding and durable needs. A closed coat product has a higher number of abrasive cutting points per square inch and results in higher stock removal rate and longer time before the abrasive wears out. Normally results in a better finish.
A sectional belt or segmented belt is custom make to your ordered. For panel industrial, the belt size can be 1950mm x 2800mm or 2650mm x 3200mm etc.
A strong bi-direction tape splice is used. Joint of WEEM 1128 segmented belt offer 2 types of joints
Tap on gain line joint: as default.
Tap on butt line joint:
Specifications:
Backing: |
YY weight waterproof polyester |
Treatments: |
Anti-static |
Coated: |
Close coated |
Grain: |
Silicon Carbide |
Grit: |
P40~P220 |
Width: |
1828mm/72” ~ 3300mm/130” |
Length: |
Customer specific |
Applications:
Woodworking /MDF/HDF/OSD/Partial board/Chip board/Glass/metal
Competitive Advantage:
It is made for wide belt sander, such as: Steinemann, Imeas, Sofuma etc. it offer great performance and durable with heavy duty grinding and sanding needs.
