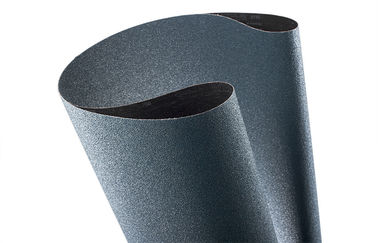

Polyester Zirconia Aluminum Segmented Belt For Wood / Particle Board

Polyester Zirconia Aluminum Segmented Belt For Wood / Particle Board

MOQ: 100 pcs
Standard Packaging: 4 pcs per box
Delivery Period: 10 workdays
Payment Method: T/T
Supply Capacity: All year
Detail Information
Place of Origin
China
Brand Name
WEEM
Model Number
3128 Segmented Belt
Treatments:
Anti-static
Grain:
Zirconia Alumina
Backing:
Waterproof Cloth|Z Weight Polyester
Bond:
Resin Over Resin
Grit:
P40-P100
Appplication:
Glass|metal|woodworking
Highlight:

Polyester Zirconia Aluminum Segmented Belt

,

Particle Board Segmented belts

Product Description





Polyester Zirconia Aluminum Segmented Belt For Wood / Particle Board





Quick Detail:

WEEM 3128 anti-static, self-sharpening Zirconia Alumina waterproof polyester segmented belts are designed for wide panel and board sanding applications.





Description:

WEEM 3128 Zirconia Alumina belts are designed for use as sectional or segmented belts. They use Z-weight polyester backing, which offers both stiffness and high tensile strength—ideal for segmented belt construction. An anti-static treatment is applied to the backing to delay or prevent loading issues.



Zirconia Alumina (ZA), identifiable by its blue color, is a tough synthetic abrasive best suited for high stock removal applications. Its heavy-duty structure requires greater pressure to fracture the self-sharpening grains. It is ideal for aggressive grinding of both ferrous and non-ferrous metals, as well as planing of hardwoods. In demanding applications, Zirconia Alumina can last up to five times longer than aluminum oxide. It is especially effective in coarse grit sizes, typically from 40 to 80, for heavy material removal.



For panel sanding industries, customized belt sizes such as 1950mm x 2800mm or 2650mm x 3200mm are available.



A strong bi-directional tape splice is used. WEEM 3128 segmented belts are available with 2 types of joint configurations.



Tap on gain line joint: Polyester Zirconia Aluminum Segmented Belt For Wood / Particle Board 0 as default.



Tap on butt line joint: Polyester Zirconia Aluminum Segmented Belt For Wood / Particle Board 1







Applications:





Woodworking/MDF/HDF/OSD/Plywood/Chipboard







Specifications:





Backing:

Z weight polyester; waterproof cloth backing

Treatments:

Anti-static

Coated:

Close coated

Bond:

Resin over resin

Grain:

Zirconia Aluminum

Grit:

P40~P100

Width:

1828mm/72” ~ 3300mm/130”

Length:

Customer specific







Competitive Advantage:

It is made for wide belt sanders such as Steinemann, Imeas, Sofuma, etc. It offers excellent performance and durability for heavy-duty grinding and sanding applications.
