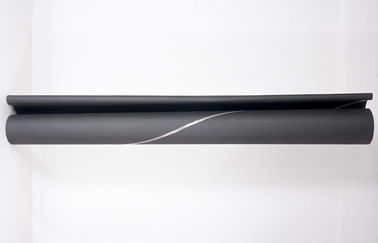

Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts

Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts

  • Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts
  • Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts
  • Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts
Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts
Product Details:
Place of Origin: China
Brand Name: WEEM
Model Number: Segmented belt For MDF
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 4 pcs per box
Delivery Time: 10 workdays
Payment Terms: T/T
Supply Ability: All year
Contact Now
Detailed Product Description
Brand Name: WEEM Treatments: Anti-static
Grain: Silicon Carbide Backing: Yy Weight Polyester
Grit: P40-P220 Appplication: Glass|metal|woodworking
High Light:

Silicon Carbide industrial sanding belts

,

Silicon Carbide Anti Static Segmented Belts

,

Anti-static Industrial Sanding Belts



Silicon Carbide Anti Static Segmented Belts For Panel Industrial  Sanding Belts



Quick Detail:





WEEM premium segmented wide belt is special make and mark 1128. It make with heavy duty YY weight polyester backing place premium silicon carbide gain, Special design for heavy duty  boards’ surface sanding. With custom sectional belt, WEEM make into belt’s length up to 3200mm with 2 joints. Best Choice for Surface Finishing of MDF, Particleboard and Plywood Panels.





Description:





WEEM premium segmented wide belt is Special design for heavy duty MDF boards’ surface sanding. Therefore when we chose the right backing to sustain cross-direction strength, YY weight waterproof polyester backing is the best choice. This is a type of cloth backing provided both stiffness strength and tensile strength, idea for sectional belt requirement. Anti-static treatment made on backing to delay or prevent loading problem.

Care selection of gains, only premium silicon carbide is selected. Silicon carbide is a very hard and crystal structure produces a fine straight edged grind lines. It is superior for its ability to penetrate with light cutting pressures. SiC is primarily used for grinding nonferrous materials such as brass, copper, bronze, and wood, glass, rubber and plastics. It is also used to finish polyurethanes, primers, lacquers and sealers. And use closed coated technique bond on the backing to ensure the grinding and durable needs. A closed coat product has a higher number of abrasive cutting points per square inch and results in higher stock removal rate and longer time before the abrasive wears out. Normally results in a better finish.



A sectional belt or segmented belt is custom make to your ordered. For panel industrial, the belt size can be 1950mm x 3200mm or 2650mm x 3200mm etc.



One of the wide belt's weak points is the joint. Compare to the tough polyester backing, jointing place have only a tape and glue on backing to hold it together. Wrong doing the joint or poor glue will causing belt broken while working. We using 3M strong bi-direction tape splice, and Bayer adhesive on the joint to optimum the jointing force. Joint of WEEM premium MDF segmented belt offer 2 types of joints



Tap on gain line joint: Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts 0 as default.



Tap on butt line joint: Silicon Carbide Anti Static Segmented Belts For Panel , Industrial Sanding Belts 1







Applications:





Woodworking /MDF/HDF/OSD/Partial board/Chip board/





Specifications:





Backing:

YY weight waterproof polyester

Treatments:

Anti-static

Coated:

Close coated

Grain:

Silicon Carbide

Grit:

P40~P220

Width:

1828mm/72” ~ 3300mm/130”

Length:

Customer specific







Competitive Advantage:





It is made for wide belt sander, such as: Steinemann, Imeas, Sofuma etc. it offer great performance and durable with heavy duty grinding and sanding needs.
