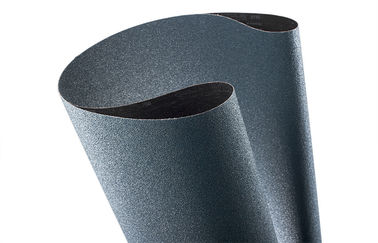

Zirconia Segmented Belt

Zirconia Segmented Belt

  • Zirconia Segmented Belt
  • Zirconia Segmented Belt
Zirconia Segmented Belt
Product Details:
Place of Origin: China
Brand Name: WEEM
Model Number: 3128 Segmented Belt
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 4 pcs per box
Delivery Time: 10 workdays
Payment Terms: T/T
Supply Ability: All year
Contact Now
Detailed Product Description
Treatments: Anti-static Grain: Zirconia Alumina
Backing: Waterproof Cloth|Yy Weight Polyester Bond: Resin Over Resin
Grit: P40-P100 Appplication: Glass|metal|woodworking
High Light:

industrial sanding belts

,

Abrasive Sanding Belts





Zirconia Anti Static Segmented Wide Belt Grit 100 With Resin Bonded





Quick Detail:



WEEM 3128 anti-static, self-sharping Zirconia aluminum, waterproof polyester segmented belts are designed for very wide panel and board sanding.





Description:





WEEM 3128 Zirconia Aluminum belts are design for sectional belt, or segmented belt. YY weight polyester backing is use; it provided both stiffness strength and tensile strength, idea for sectional belt. Anti-static treatment made on backing to delay or prevent loading problem.

Zirconia Alumina, ZA, is recognized by its blue color. A rugged synthetic abrasive that is best suited to stock removal applications. The heavy duty structure requires heavier pressure to break down the self-sharpening grains. It is ideal for heavy grinding on ferrous and non-ferrous metals and planning hard woods. This abrasive can last up to 5 times longer than aluminum oxide on tough applications. This gives the grain a longer cutting life and is especially suited to coarser stock removal applications typically grit 40 to grit 80. For panel industrial, the customized belt size can be 1950mm x 2800mm or 2650mm x 3200mm etc.



A strong bi-direction tape splice is used. Joint of WEEM 3128 segmented belt offer 2 types of joints.



Tap on gain line joint: Zirconia Segmented Belt 0 as default.



Tap on butt line joint: Zirconia Segmented Belt 1







Applications:





Woodworking/ /MDF/HDF/OSD/Partial board/Chip board







Specifications:





Backing:

Yy weight polyester; waterproof cloth backing

Treatments:

Anti-static

Coated:

Close coated

Bond:

Resin over resin

Grain:

Zirconia Aluminum

Grit:

P40~P100

Width:

1828mm/72” ~ 3300mm/130”

Length:

Customer specific







Competitive Advantage:





It is made for wide belt sander, such as: Steinemann, Imeas, Sofuma etc. it offer great performance and durable with heavy duty grinding and sanding needs.
